Detail produk:
|
| warna: | Kotak abu-abu | Tipe Konektor: | SC |
|---|---|---|---|
| Polandia: | APC | splitter: | 1 x 4 |
| Modus: | modus tunggal | OEM: | TERSEDIA |
| Cahaya Tinggi: | mode single fiber splitter,kabel serat optik splitter |
||

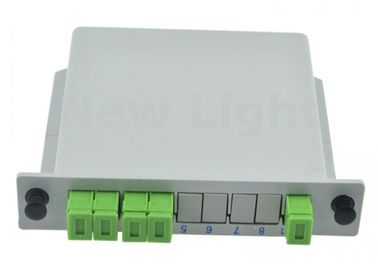

SC APC PLC 1X4 splitter Kotak Serat Optik FTTH Planar Waveguide tipe Optical splitter
Aplikasi:
1. Sistem FTTX
2. Sistem FTTH
3. Jaringan PON
4. Tautan CATV
5. Distribusi Sinyal Optik
Spesifikasi:
| Jenis kemasan | 1 × 4 | 2 × 4 | 1 × 8 | 2 × 8 | 1 × 16 | 2 × 16 | 1 × 32 | 2 × 32 | 1 × 64 |
| Serat Ribbon (L × W × H) (mm) | 40 × 4 × 4.0 | 50 × 4,5 × 4,0 | 45 × 4,5 × 4,0 | 50 × 4,5 × 4,0 | 45 × 4,5 × 4,0 | 60 × 7.0 × 4.0 | 50 × 7.0 × 4.0 | 60 × 7.0 × 4.0 | 60 × 15 × 4.0 |
| D0.9mm Loose Tube | 50 × 7.0 × 4.0 | 50 × 7.0 × 4.0 | 60 × 12 × 4.0 | 60 × 12 × 4.0 | 60 × 12 × 4.0 | 60 × 12 × 4.0 | 80 × 20 × 6.0 | 80 × 20 × 6.0 | 100 × 20 × 6.0 |
| (L × W × H) | |||||||||
| (mm) | |||||||||
| ABS Box Size (mm) (untuk pigtail 2.0mm) | 100 × 80 × 10 | 100 × 80 × 10 | 120 × 80 × 18 | / | |||||
| ABS Box Size (mm) (untuk kuncir 3.0 / 0.9mm) | / | / | / | / | 120 × 80 × 18.5 | 140 × 114 × 18 | |||
