Detail produk:
|
| Nama: | Kabel serat SC-LC patch | Diameter: | 2.0mm |
|---|---|---|---|
| Model: | Tunggal | Konektor: | SC-LC |
| warna: | Kuning | Panjang: | 3 meter |
| Cahaya Tinggi: | duplex fiber patch cord,single mode fiber optic cable |
||

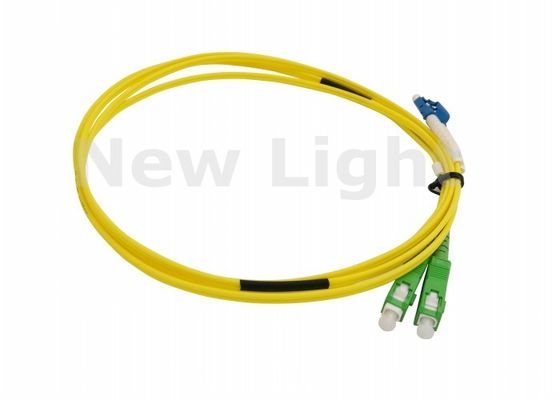

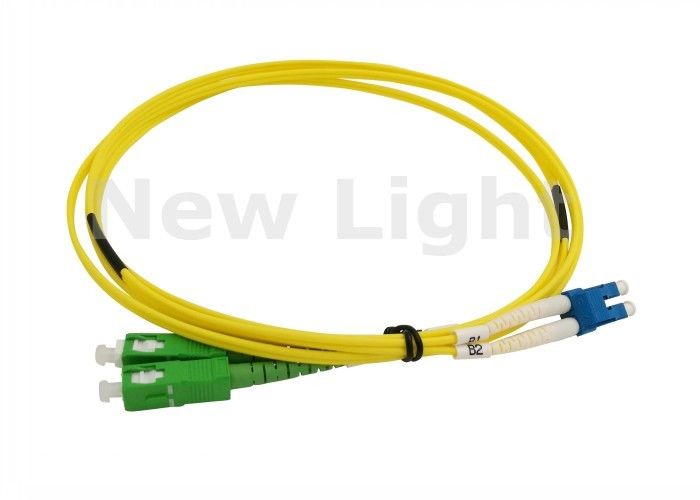

Kabel warna kuning SC-LC UPC 3M Single mode duplex kabel serat optik kabel kabel SC-LC 2.0mm
Spesifikasi
| Spesifikasi | Satuan | FC, SC, LC / Kabel Lapis Baja | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Mode tunggal | Multi mode | Mode tunggal | Multi mode | Mode tunggal | Multi mode | Mode tunggal | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Kerugian penyisipan | dB | ≤2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Mengembalikan kerugian | dB | ≥550 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Panjang gelombang | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Pertukaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Suhu Operasional | ℃ | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
| Suhu penyimpanan | ℃ | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
| Diameter kabel | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Karakteristik
1) Tipe konektor: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Tipe Core: Single-mode (SM: 9 / 125um), Multimode (MM: 50 / 125um atau 62.5 / 125um)
4) Cable Quantity: Simplex, Duplex, 6cores, 12corns, 16cores, 24cores, 36cores, 48cores ...
5) Diameter Kabel: φ3.0mm, φ2.0mm, φ0.9mm
6) Panjang kabel: 1, 2, 3 meter atau disesuaikan
7) Jenis kabel: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Lapis Baja
Aplikasi
CATV
Sistem komunikasi serat optik
Transmisi data serat optik
Membangun akses jaringan
Sistem pengkabelan, ODF
Aplikasi FTTX
fitur
Kehilangan penyisipan rendah dan kerugian refleksi balik
Echangeability yang bagus Ketahanan yang baik
Stabilitas suhu tinggi
CE, ROHS, FCC
