Detail produk:
|
| Nama: | SC kabel serat LC kabel | Diameter: | 2.0mm |
|---|---|---|---|
| Model: | Tunggal | Konektor: | SC-LC |
| warna: | Kuning | Panjang: | 3 meter |
| Cahaya Tinggi: | serat optik pigtail,kabel serat optik ftth |
||

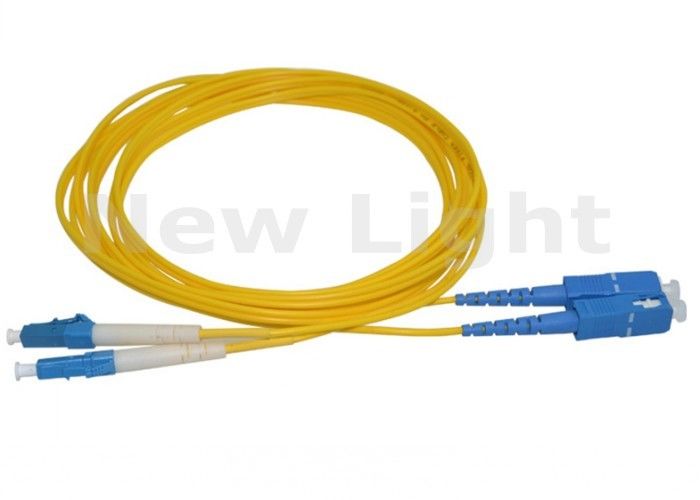

SC-LC UPC 3M Single mode duplex serat kabel kabel patch optik SC-LC 2.0mm FTTH serat optik jumper kabel
Karakteristik
1) Tipe konektor: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Tipe Core: Single-mode (SM: 9 / 125um), Multimode (MM: 50 / 125um atau 62.5 / 125um)
4) Cable Quantity: Simplex, Duplex, 6cores, 12corns, 16cores, 24cores, 36cores, 48cores ...
5) Diameter Kabel: φ3.0mm, φ2.0mm, φ0.9mm
6) Panjang kabel: 1, 2, 3 meter atau disesuaikan
7) Jenis kabel: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Lapis Baja
fitur
Kehilangan penyisipan rendah dan kerugian refleksi balik
Echangeability yang bagus Ketahanan yang baik
Stabilitas suhu tinggi
CE, ROHS, FCC
Spesifikasi
| Spesifikasi | Satuan | FC, SC, LC / Kabel Lapis Baja | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Mode tunggal | Multi mode | Mode tunggal | Multi mode | Mode tunggal | Multi mode | Mode tunggal | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Kerugian penyisipan | dB | ≤2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Mengembalikan kerugian | dB | ≥550 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Panjang gelombang | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Pertukaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Suhu Operasional | ℃ | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
| Suhu penyimpanan | ℃ | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
| Diameter kabel | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Aplikasi
CATV
Sistem komunikasi serat optik
Transmisi data serat optik
Membangun akses jaringan
Sistem pengkabelan, ODF
Aplikasi FTTX
