Detail produk:
|
Modus Jenis: | modus tunggal | Kecepatan: | 10/100/1000 M |
---|---|---|---|
Kecepatan data: | 2.5G / 1.25G / 10G | Sertifikat: | CE, ISO, RoHS TUV, EMC |
Jarak: | 20KM | Panjang gelombang: | 1310 / 1550nm |
Kekuasaan: | -3-9dBM | Garansi: | 3 Tahun |
Suhu operasi: | 0-70 | Aplikasi: | FTTH / FTTB / FTTX |
Produk: | modul serat cisco sfp serat optik transceiver 10G 850nm 300m SFP + | ||
Cahaya Tinggi: | gigabit ethernet transceiver,single mode fiber transceiver |

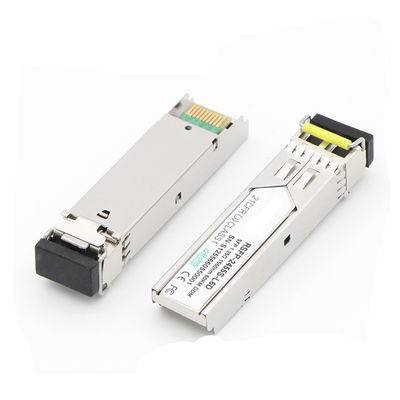

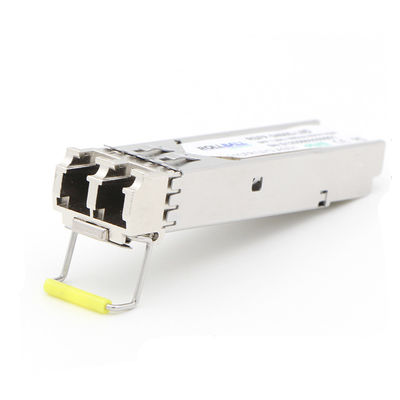

modul serat cisco sfp serat optik transceiver 10G 850nm 300m SFP +
Deskripsi
1. Transceiver SFP adalah kinerja tinggi, modul hemat biaya.
2. Transceiver terdiri dari tiga bagian: pemancar FP laser, fotodioda PIN terintegrasi dengan trans-impedance preamplifier (TIA) dan unit kontrol MCU. Semua modul memenuhi persyaratan keselamatan kelas I laser.
3. Transceiver kompatibel dengan SFP Multi-Source Agreement (MSA) dan SFF-8472. Untuk informasi lebih lanjut, silakan lihat SFP MSA.
fitur
1 Kecepatan data ganda.
2. Jarak transmisi hingga 120km
3. Compliant dengan SFP MSA dan SFF-8472 dengan duplex LC receptacle
4. Monitoring Diagnostik Digital:
Kalibrasi Internal atau Kalibrasi Eksternal
5. Kompatibel dengan SONET OC-24-LR-1
6. Kompatibel dengan RoHS
7. + 3.3V catu daya tunggal
8. Suhu kasus operasi:
Standar: 0 hingga +70 ° C
Industri: -40 hingga +85 ° C
Aplikasi
1. Gigabit Ethernet
2. Saluran
3. Beralih ke Antarmuka saklar
4. Aplikasi backplane yang diganti
5. Antarmuka Router / Server
6. Sistem transmisi optik lainnya
Merek Compitable
- Semua jenis modul sfp dapat dihitung, hanya untuk memberi tahu kami merek mana yang Anda inginkan untuk compitbale ketika dipesan.
Daftar Produk
SFP (155M / 622M / 1.25G / 2.125G / 2.5G / 4.25G) tanpa DDMI | |||||||
RSFP-0385M-02 | 155 juta | 850 | MM | 2km | SFP | 0 ~ 70 | 850nm VCSEL |
RSFP-0331M-02 | 155 juta | 1310 | MM | 2km | SFP | 0 ~ 70 | FP (LED) + PIN |
RSFP-0331S-L2 | 155 juta | 1310 | SM | 20km | SFP | 0 ~ 70 | FP + PIN |
RSFP-0331S-L4 | 155 juta | 1310 | SM | 40km | SFP | 0 ~ 70 | FP + PIN |
RSFP-0355S-L8 | 155 juta | 1550 | SM | 80km | SFP | 0-70 | DFB + PIN |
RSFP-1231S-L2 | 622M | 1310 | SM | 20km | SFP | 0 ~ 70 | FP + PIN |
RSFP-1231S-L4 | 622M | 1310 | SM | 40km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2485M-S5 | 1.25G | 850 | MM | 550 m | SFP | 0 ~ 70 | VSCEL + PIN |
RSFP-2431S-L2 | 1.25G | 1310 | SM | 20km | SFP | 0 ~ 70 | FP + PIN |
RSFP-2431S-L4 | 1.25G | 1310 | SM | 40km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2455S-L6 | 1.25G | 1550 | SM | 60km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2455S-L8 | 1.25G | 1550 | SM | 80km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2455S-12 | 1.25G | 1550 | SM | 120km | SFP | 0 ~ 70 | DFB + APD |
RSFP-4885M-S3 | 2.125G / 2.5G | 850 | MM | 300 m | SFP | 0 ~ 70 | VSCEL + PIN |
RSFP-4831S-02 | 2.125G / 2.5G | 1310 | SM | 2km | SFP | 0 ~ 70 | FP + PIN |
RSFP-4831S-L2 | 2.125G / 2.5G | 1310 | SM | 20km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-4855S-L6 | 2.125G / 2.5G | 1550 | SM | 60km | SFP | 0 ~ 70 | DFB + APD |
RSFP-4855S-L8 | 2.125G / 2.5G | 1550 | SM | 80km | SFP | 0 ~ 70 | DFB + APD |
SFP (155M / 1.25G / 2.125G / 2.5G / 4.25G) dengan DDMI | |||||||
RSFP-0385M-02D | 155 juta | 850 | MM | 2km | SFP | 0 ~ 70 | 850nm VCSEL |
RSFP-0331M-02D | 155 juta | 1310 | MM | 2km | SFP | 0 ~ 70 | FP (LED) + PIN |
RSFP-0331S-L1D | 155 juta | 1310 | SM | 10km | SFP | 0 ~ 70 | FP + PIN |
RSFP-0331S-L4D | 155 juta | 1310 | SM | 40km | SFP | 0 ~ 70 | FP + PIN |
RSFP-0355S-L8D | 155 juta | 1550 | SM | 80km | SFP | 0-70 | DFB + PIN |
RSFP-1231S-L2D | 622M | 1310 | SM | 20km | SFP | 0 ~ 70 | FP + PIN |
RSFP-1231S-L4D | 622M | 1310 | SM | 40km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2485M-S5D | 1.25G | 850 | MM | 550 m | SFP | 0 ~ 70 | VSCEL + PIN |
RSFP-2431S-L2D | 1.25G | 1310 | SM | 20km | SFP | 0 ~ 70 | FP + PIN |
RSFP-2431S-L4D | 1.25G | 1310 | SM | 40km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2455S-L6D | 1.25G | 1550 | SM | 60km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2455S-L8D | 1.25G | 1550 | SM | 80km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-2455S-12D | 1.25G | 1550 | SM | 120km | SFP | 0 ~ 70 | DFB + APD |
RSFP-4885M-S3D | 2.125G / 2.5G | 850 | MM | 300 m | SFP | 0 ~ 70 | VSCEL + PIN |
RSFP-4831S-02D | 2.125G / 2.5G | 1310 | SM | 2km | SFP | 0 ~ 70 | FP + PIN |
RSFP-4831S-L2D | 2.125G / 2.5G | 1310 | SM | 20km | SFP | 0 ~ 70 | DFB + PIN |
RSFP-4855S-L6D | 2.125G / 2.5G | 1550 | SM | 60km | SFP | 0 ~ 70 | DFB + APD |
RSFP-4855S-L8D | 2.125G / 2.5G | 1550 | SM | 80km | SFP | 0 ~ 70 | DFB + APD |
RSFP-4855-12D | 2.125G / 2.5G | 1550 | SM | 120km | SFP | 0 ~ 70 | DFB + APD |
RSFP-4G85M-S5D | 4.25G | 850 | MM | 500 m | SFP | 0 ~ 70 | VSCEL + PIN |
RSFP-4G31S-02D | 4.25G | 1310 | SM | 2km | SFP | -20 ~ 85 | FP + PIN |
RSFP-4G31S-L1D | 4.25G | 1310 | SM | 10km | SFP | 0 ~ 70 | DFB + PIN |
APLIKASI
1. 10GBASE-BX di 10.3125 Gb / s
2. 10GBASE-BX di 9.953 Gb / s
Descripition Produk
TRANSCOM'S TS-SF-T12-02-2 10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceiver didasarkan pada SFP Multi Source Agreement (MSA). Mereka kompatibel dengan standar Gigabit Ethernet sebagaimana ditentukan dalam IEEE Std 802.3. Lapisan BASE-Tphysical 10/100/1000 IC (PHY) dapat diakses melalui I2C, memungkinkan akses ke semua pengaturan PHY dan fitur.
TS-SF-T12-02-2 kompatibel dengan negosiasi otomatis 1000BASE-X, tetapi tidak memiliki fitur indikasi tautan (RX_LOS berintikan internal).
