1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connectorfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'id', function () {});}

Nama merek:	New Light
Nomor Model:	FC APC
Moq:	10
harga:	1~30
Rincian kemasan:	Pengemasan Ekspor
Ketentuan Pembayaran:	T/T, Western Union, MoneyGram, PayPal

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO ,ROSH

Nama Produk:

Tipe Konektor:

FC APC

Modus Jenis:

Mode Tunggal

Panjang gelombang operasi:

1064nm

≤0.2dB

Kembali kerugian:

Menyediakan kemampuan:

1000000

Menyoroti:

modus tunggal serat splitter

serat optik kabel splitter

Deskripsi Produk

Optical Fiber Circulator Product Name

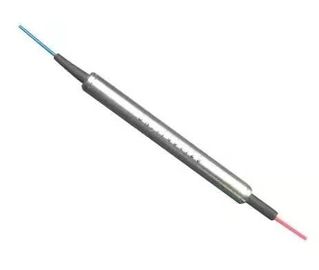

1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connector

Optical Fiber Circulator Description

Circulators can be used to send optical signals through a single fiber in two directions.

An optical circulator is analogous to an electronic circulator and both perform similar functions.

An optical circulator is a three-port device that allows light to travel in only one direction.

A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.

Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.

Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free

Optical Fiber Circulator Applications

Add-Drop Multiplexing
Fiber Sensors
Bidirectional Pumping
Bidirectional Signal Transmission Systems
Coupling In-Line Chromatic Dispersion Compensation Devices

Optical Fiber Circulator Specifications

Item	Unit	Parameters
Operating wavelength	nm	1064
Bandwidth	nm	±5	±10	±20	±30
Isolation	dB	≥25	≥23	≥20	≥20
Insertion Loss@Band,23℃	dB	≤2.1	≤2.6	≤3.2	≤3.8
PDL	dB	≤0.2
Return Loss	dB	≥ 50
Cross Talk	dB	≥ 45
PDL	dB	≤ 0.1
Maximum Optical Power	mW	≤ 300
Fiber Type	_/	Hi1060
Operation Temperature	⁰C	0~50
Storage Temperature	⁰C	-40~85
Package Dimension	mm	34x8.4x8.4(P1)

Note:

All the specifications are based on the devices without connector, and guaranteed over wavelength, polarization and temperature.

2. Specifications are subject to change without notice.

Optical Fiber Circulator Dimension(mm)

Optical Fiber CirculatorOrdering Information(Example:CIR-12210)

CIR-	□	□	□	□	□
	Wavelength	Bandwidth	Fiber Type	Fiber Length	Connector Type
	1.1064nm 2.Others	1.±5nm 2.±10nm 3.±20nm 4.±30nm	1.250μm fiber 2.900μm fiber 3. Others	1.0.5 +/- 0.1 m 2. 1.0 +/- 0.1 m 3. Others	0.No Connector 1. FC/UPC 2. FC/APC 3. SC/UPC 4. SC/APC 5. LC/PC 6. MU/PC 7. Others
