Detail produk:
|
| Nama: | Kabel serat SC SC | Diameter: | 2.0mm |
|---|---|---|---|
| Model: | Tunggal | Konektor: | SC-SC |
| warna: | Kuning | Panjang: | 1 meter |
| Cahaya Tinggi: | duplex fiber patch cord,single mode fiber optic cable |
||

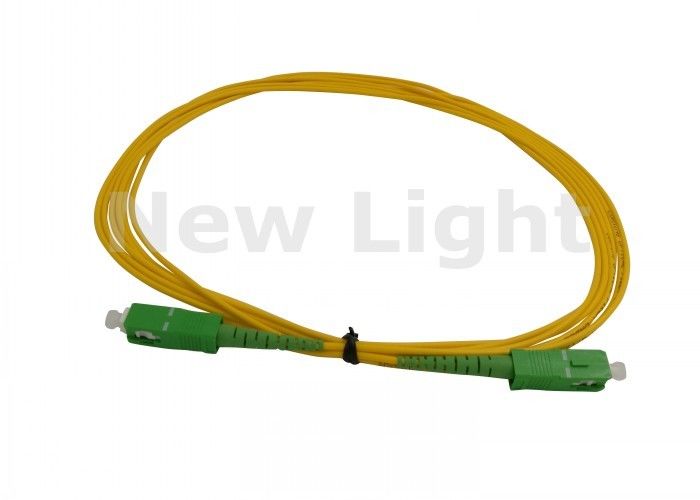

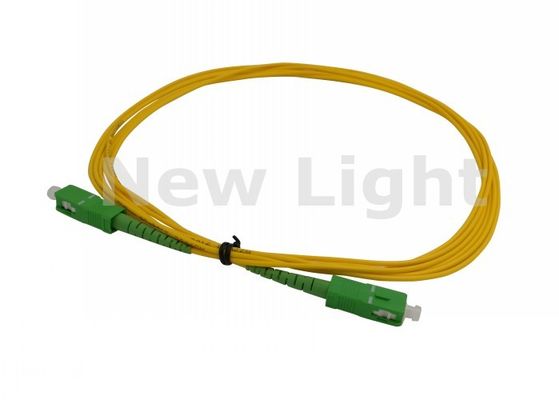

SC APC-SC UPC 3M Simplex mode kabel serat optik kabel Kabel SC APC 2.0mm atau kabel serat optik 3.0mm jumper
Aplikasi
CATV
Sistem komunikasi serat optik
Transmisi data serat optik
Membangun akses jaringan
Sistem pengkabelan, ODF
Aplikasi FTTX
fitur
Kehilangan penyisipan rendah dan kerugian refleksi balik
Echangeability yang bagus Ketahanan yang baik
Stabilitas suhu tinggi
CE, ROHS, FCC
Karakteristik
1) Tipe konektor: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Tipe Core: Single-mode (SM: 9 / 125um), Multimode (MM: 50 / 125um atau 62.5 / 125um)
4) Cable Quantity: Simplex, Duplex, 6cores, 12corns, 16cores, 24cores, 36cores, 48cores ...
5) Diameter Kabel: φ3.0mm, φ2.0mm, φ0.9mm
6) Panjang kabel: 1, 2, 3 meter atau disesuaikan
7) Jenis kabel: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Lapis Baja
Spesifikasi
| Spesifikasi | Satuan | FC, SC, LC / Kabel Lapis Baja | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Mode tunggal | Multi mode | Mode tunggal | Multi mode | Mode tunggal | Multi mode | Mode tunggal | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Kerugian penyisipan | dB | ≤2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Mengembalikan kerugian | dB | ≥550 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Panjang gelombang | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Pertukaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Getaran | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Suhu Operasional | ℃ | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | -40 ~ 75 | ||||||||
| Suhu penyimpanan | ℃ | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | -45 ~ 85 | ||||||||
| Diameter kabel | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
